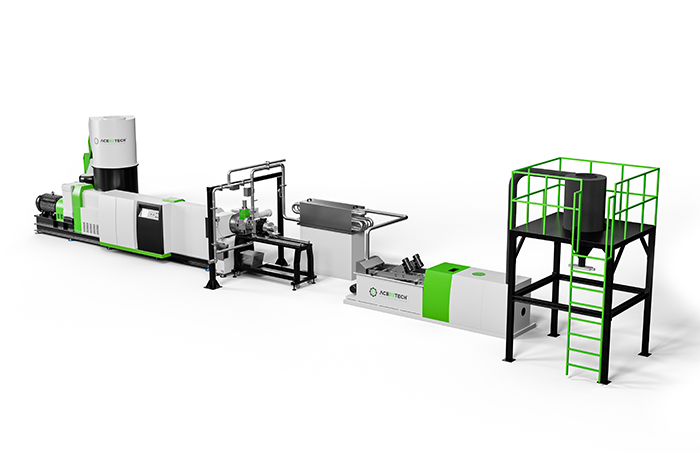

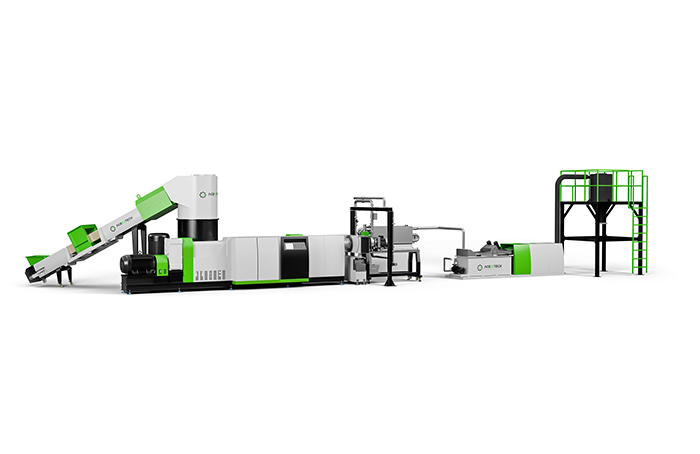

AWTech 180 PP PE Plastic Film Woven Bag Cold Strand Pelletizing Extrusion System
  • ACE WashTech
  • China
  • 45 days
  • 100 sets

1. AWTech series provide best solution for PP PE film,raffia, filament, bang, woven bag, nonwoven fabric and EPS foam material recycling.
2. Compactor make material crushed, dried and compacted in one step.
3. Double-zone vacuum degassing system with efficient air exhausting to remove volatile.
4. Cutting speed controlled by PLC automatically according to the melt pressure to get uniform granules.
5. Seimens PLC with intelligence control HMI. One button to start-up and one button to stop whole system.
6. All electrical units: Seimens, ABS and LS.

AWTech 180 PP PE Plastic Film Woven Bag Cold Strand Pelletizing Extrusion System

INTRODUCTION

The AWTech 180 PP PE Plastic Film Woven Bag Cold Strand Pelletizing Extrusion System combines function of compacting, extrusion and pelletizing into one step. The system provides best solution for PP/PE film, raffia, filament, bag, woven bag, nonwoven fabric and EPS foam materials recycling. Washed plastic film as well as post-industrial plastic waste could be recycled in the KCP 180 PP PE Plastic Film Woven Bag Cold Strand Pelletizing Extrusion System. Will get high quality and uniform size final granules which could be reused back into the plastic products making line.


Efficient feeding

The material of belt convey is PVC.

Roll hauling off device is an optional feeding method to handle roll's scraps.

ABB inverter is equipped.

Feeding speed is automatically based on how full the compactor's room is.

Mental detector can be optional equipped to remove metal in raw material.

Roll hauling off device is an optional feeding method to handle rolls' scraps.


Woven bag recycling line


Compacting and extrusion unit

Compactor

Compactor makes material crushed, dried and compacted in one step, which enables a fast and stable feeding from the compactor directly into the extruder.

The rotatory blades will cut the material. Frictional heating caused by high speed rotatory blades will heat and make material shriking. Guide structure with special design compacts the material and directs it into extruder screw.


Specialized single screw extruder

34D or 36D processing section of extruder ensures perfect plasticization.

With double-zone vacuum degassing system, volatiles and moisture will be removed efficiency.

Precise temperature control system.


cold strand pelletizing system


Advanced melt filtration

 With larger filtering area, suitable for dealing with a wide variety of polymers.

  • Perfect sealing effect.

  • Standard screen dimentions ranges from 80 to 250mm.Or can be customized for special size.

  • Designed with protection cover,for safe operation and pleased appearance.


plastic woven bag extrusion and pelletizing


Special pelletizing system


Woven bag recycling line


Effective drying system

Vibration dryer

Founction: Removing the moisture of the pellets surface. Selecting the uniform size pellets.


cold strand pelletizing system


Centrifugal dryer

Removing the moisture of the pellets.


plastic woven bag extrusion and pelletizing


Control unit

All electrical units mounted in asteel cabinet.

Adopt siemens PLC with intelligence control HMI, one button to start-up and one button to stop whole system.

Safety interlock principle applied in the system.

All electrical units: Schneider, Siemens, ABB and LS.


Woven bag recycling line



Final product

Uniform size pellet, round shape with diameter: 3~5mm.


cold strand pelletizing system


TECHNICAL SPECIFICATION

Model

Compactor volume

Compactor Motor power

Diameter of screw

L/D

Screw extruder motor power

Output capacity

AWTech 80

300 L

37 KW

80 mm

36

45/55 KW

160-220 kg/h

AWTech 100

500 L

55 KW

100 mm

36

90/110 KW

300-380 kg/h

AWTech 120

800 L

90 KW

120 mm

36

132 KW

450-480 kg/h

AWTech 140

1000 L

110 KW

140 mm

36

160/185 KW

500-650 kg/h

AWTech 160

1200 L

132 KW

160 mm

34

220/250 KW

800-1000 kg/h

AWTech 180

1400 L

160 KW

180 mm

34

315 KW

1000-1200 kg/h
