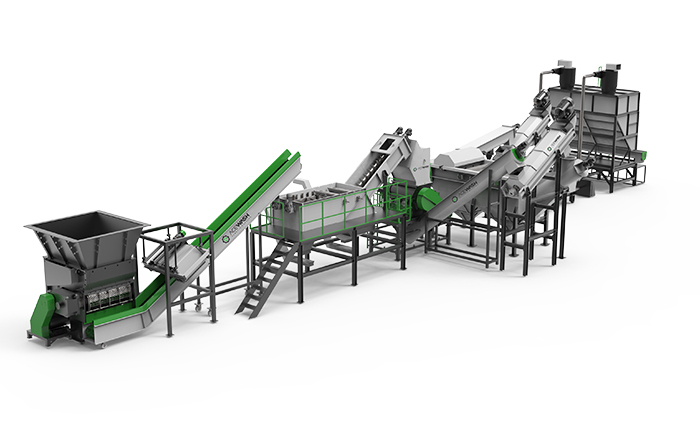

Soft Plastic Washing Line
  • ACE WashTech
  • China
  • 45 days
  • 100 sets

Higher output and lower energy consumption.
Low water consumption, 95%recycled-release.
Lower investment cost for a high quality and durable machine.
Auto control system.
Control mofule system.
Fast machine delivery and installation.

INTRODUCTION

Ability

Thanks to innovative washing technology and high quality performance. ECO SERIES Plastic Washing Line removes the most difficult contaminants from PP/ PE/ PS/ ABS plastic materials. Cleans post consumer film, agricultural film, Rigid bottle/ drum, Battery case, WEEE plastic and even heavily contaminated woven bag fibre material. Provides almost 100% purity washing results.



Feeding units

High throughput;

Build-in hydraulic ram;

variable faster ram movement;

Less space occupied than traditional shredders with horizontal rams;

Enclosed cutting chamber to prevent materials flying out;

Screen plates are made of wear-resistant steel, quick and easy maintenance.


Belt conveyor (Heavy duty)

Reducer type: Gear Reducer Motor, China top quality

built in sturdy frame construction in heavy duty version

side walls to avoid spilling of the feeding material

PP washing machines

Screw loader

PP washing and recycling devices


Optional shredder and crusher

dirty PE plastic washing machines


Washing units

Low water consumption, 95% recycled-release;

Simple water treatment;

High-quality separation;

Pre-sorting material( steel, sands);

Active material washing;

Automatic cleaning function;

Water recycling system online;

Intelligent control system;

Heavy material separator( double-valve control with collection tank);

Modular design and intergrated installation;

Easy exchange of elements;

Heavy duty washing, separation of different specific densities material;

Longer lifetime of downstream machines;

Dust separation devices.


Pre-washing machine

PP washing machines


High-speed friction washer

PP washing and recycling devices

Friction washer

dirty PE plastic washing machines

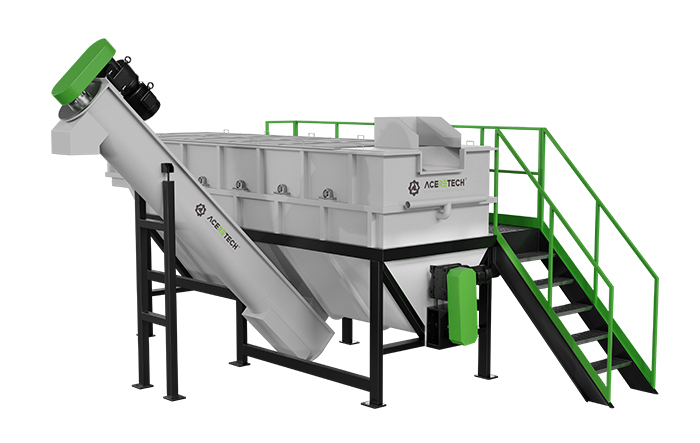

Floating tank

PP washing machines


Dewatering units

Combines a cleaning centrifuge and thermomechanical drying in a single plant. This enables a clean, dry process that is easy on the material and produces consistently high end product quality;

Drying and cleaning in a single step;

Simple operations, low maintenance effort;

Automatic machine control;

Final moisture less than 7%.


Squzzer

PP washing and recycling devices

Dewatering machine and pipeline dryer

dirty PE plastic washing machines


Intelligent control system

Auto control system;

Auto warming system;

Control module system;

Data monitoring and analysis.


Final products

Clean flakes with moisture less than 7%


BASIC DATA OF WASHING SYSTEM


ModelECO 300
PRO 300ECO 500PRO 500 ECO 750
PRO 750ECO 2000
PRO 2000
Capacity for film220-350 kg/h
220-350 kg/h450-550 kg/h450-550 kg/h750-1000 kg/h750-1000 kg/h1800-2200 kg/h1800-2200 kg/h
Installed power163 KW167 KW215 KW223 KW168 KW362 KW744 KW910 KW
Working power114 KW121 KW161 KW167 KW126 KW271 KW560 KW700 KW
Fresh water consumption0.5-1 m3/h0.5-1.5 m3/h0.5-2 m3/h1-2.5m3/h3-5 m3/h3-5m3/h8-10 m3/h8-10 m3/h
Moisture of output<7%<7%<7%<7%<7%<7%<7%<7%
Operation staff33334-55-65-65-6
Dimension (L*W*H)M18*4*820*4*822*4*836*4*847*4*858*5.5*874*6.5*883*6.5*8




FAQ
What should I offer for the most suitable solutions?
Please provide the capacity you required and the picture of raw material, which can help us to confirm the condition of the raw material. Different materials have different processing programs....more
